Hive BSM
World's first 2-in-1 blind spot monitoring for most motorcycles
Intuition, Simple, Safety
We hope that HIVE BSM with intelligent design of universal installation, allowing the majority of motorcycles to have blind spot detection and protection. In addition to meeting the safety requirements of heavy motorcycle riders at high speeds, for food delivery riders, postmen, and couriers who have large outer boxes installed behind the motorcycle, the blind area of the rearview mirror caused by the outer box more necessary HIVE BSM increases the safety at work.
Feature
- Won the iF Design Award 2021
- Won the Golden Pin Design Award in 2020

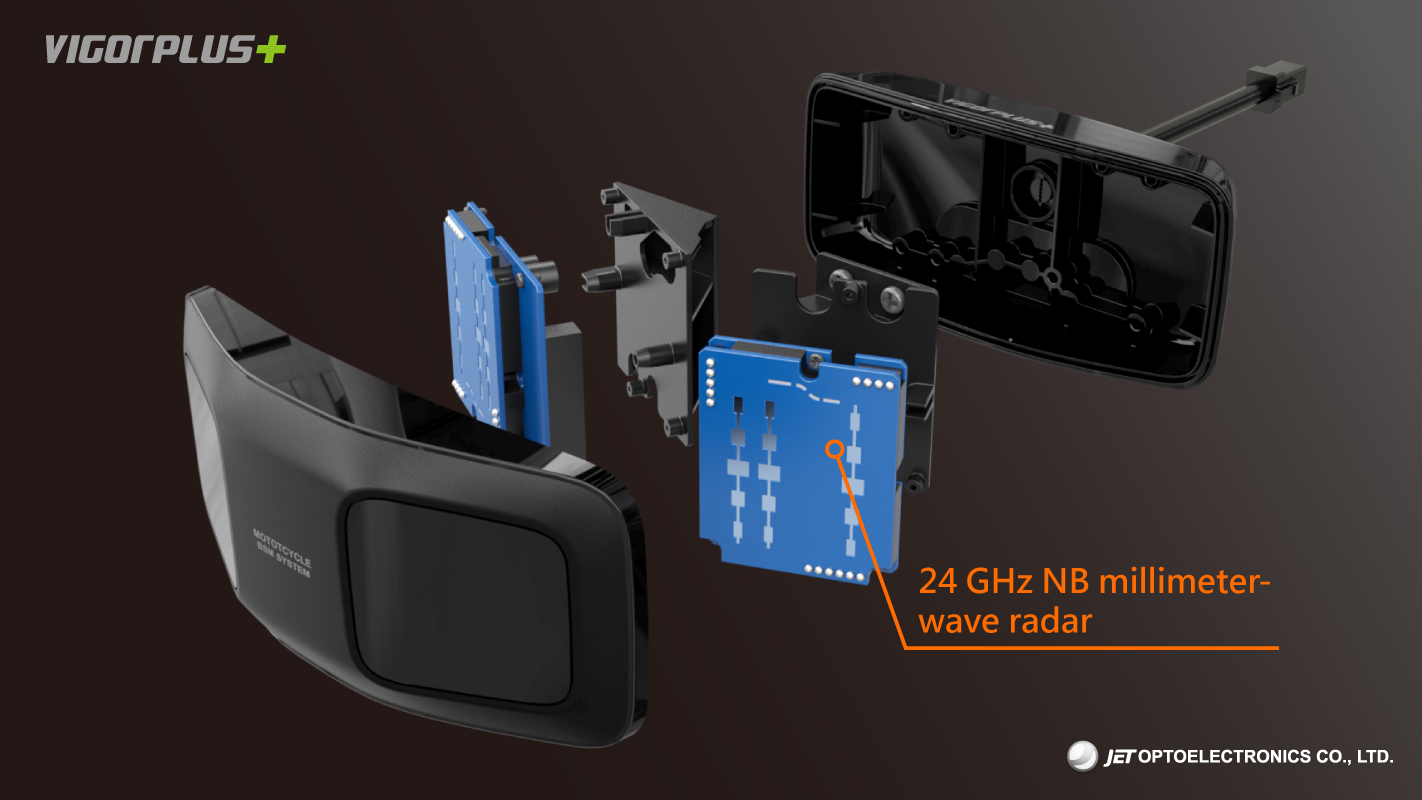

- 24 GHz NB millimeter-wave radar 2 in 1

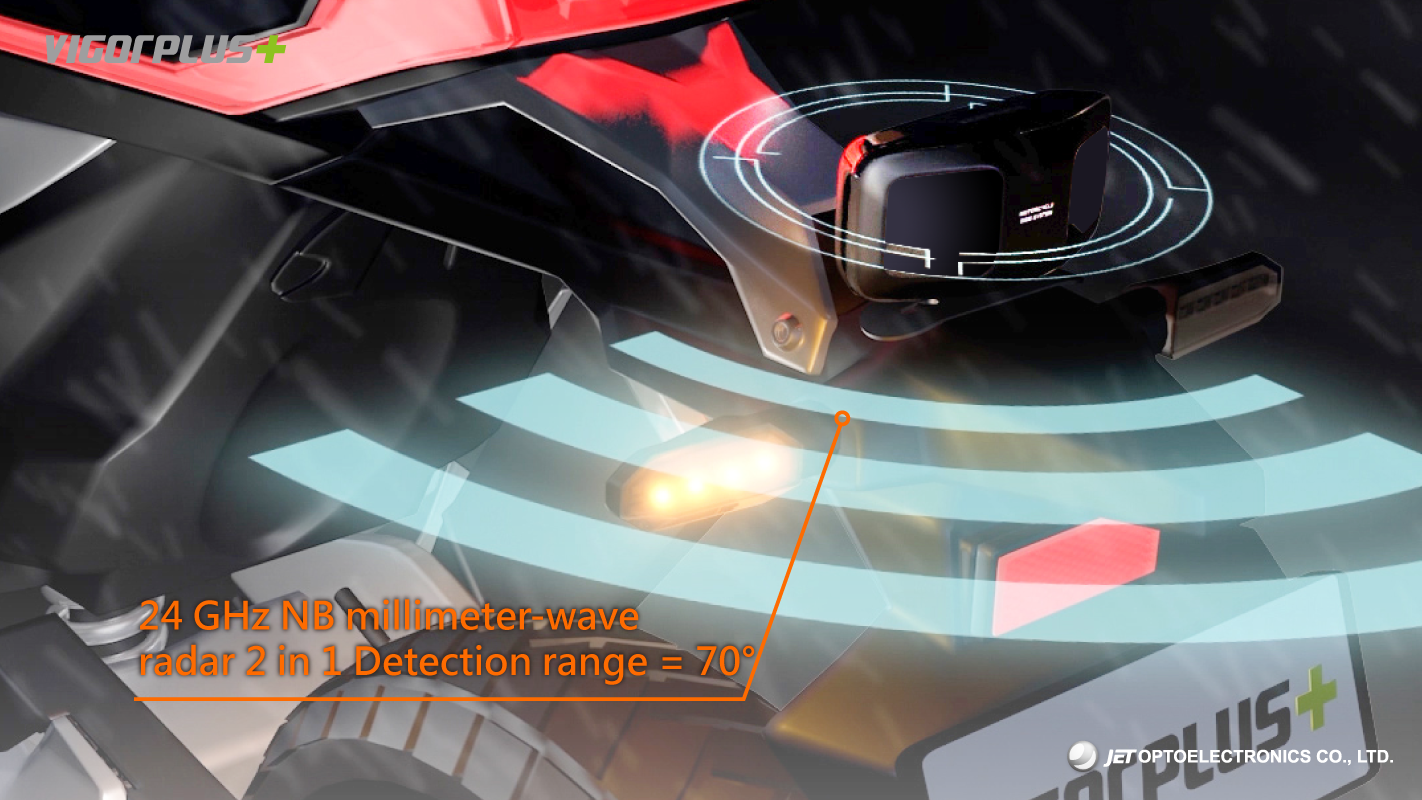

- Blind area wide-angle detection

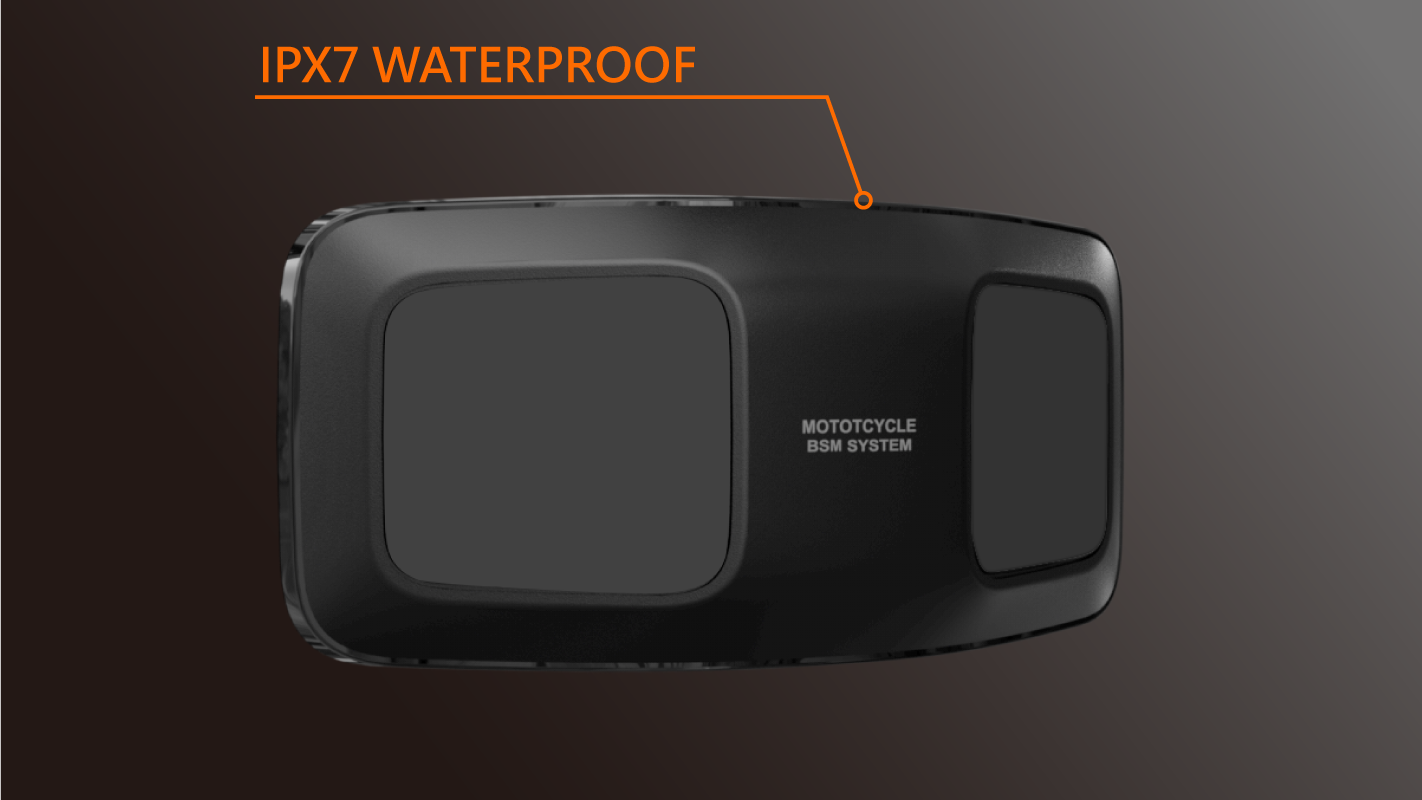

- Waterproof and dustproof IPX7
- Easy and rapid installation
- Intuitive sense warning
Main Device Specification
- Dimension
- 121.6mm x 56.5mm x 45.3mm
- Module inside
- BSM module(1TX,2RX) x 2

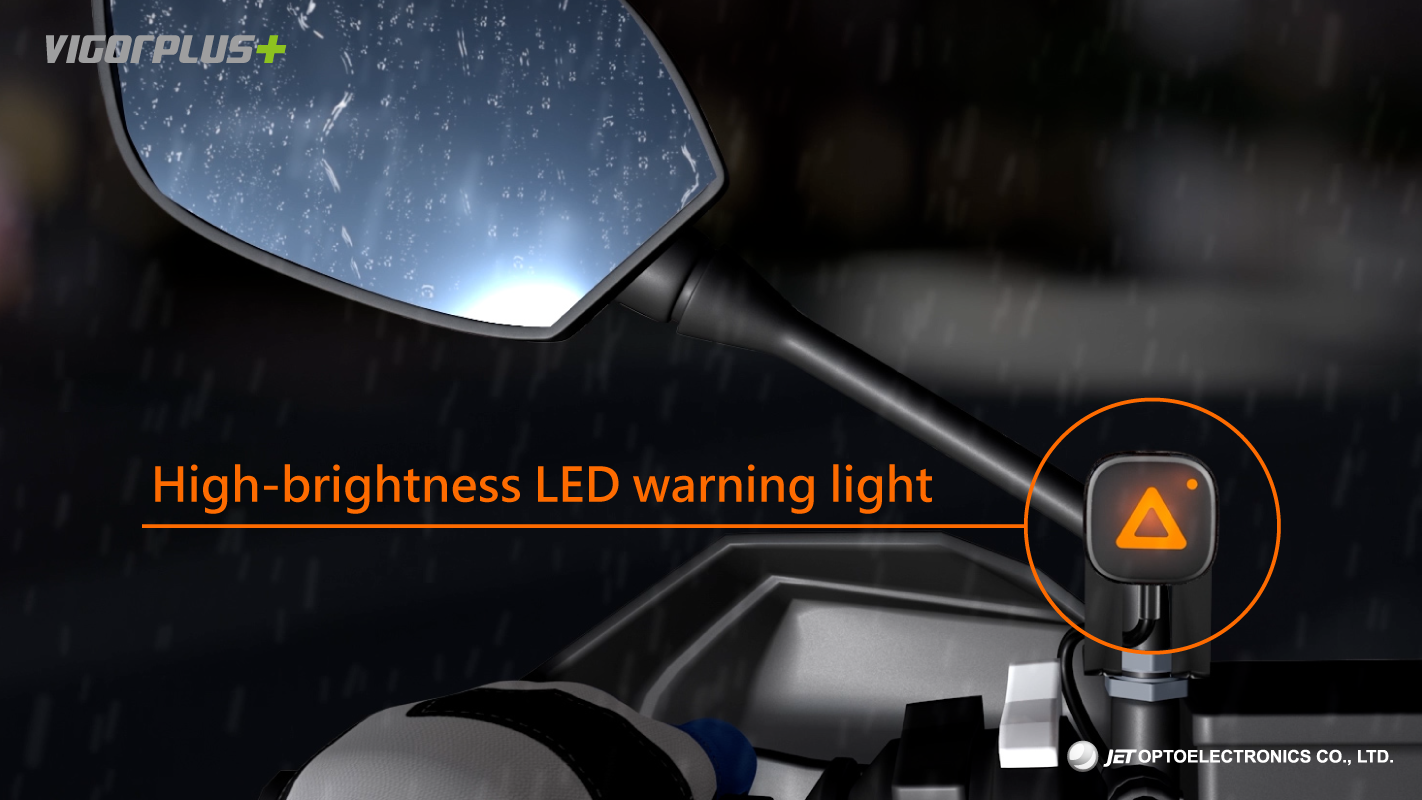

- Power LED on warning display
- Waterproof level
- IPX7
- Voltage
- DC9-16V
- Consumption
- < 500mA@12V
- Sensor frequency
- 24.00-24.25Ghz
- Transmitting Power
- 11dbm(typical)
- Frame rate
- 20Hz
- Modulation Mode
- MFSK
- Vertical angle
- 30°
- Horizontal angle
- 70°
- Detecting relative speed range: ±100km/h
- Detection response speed
- 300ms
- Angle accuracy
- ±1.5°/± 40°
- Distance accuracy
- ±0.4m/±5%
- Operation temperature
- -40~+80°C
- Storage temperature
- -40~+85°C
Compatible models
Most Motorcycle & Scooter
【This product is an original design of Vigorplus and patent protection in many countries】
